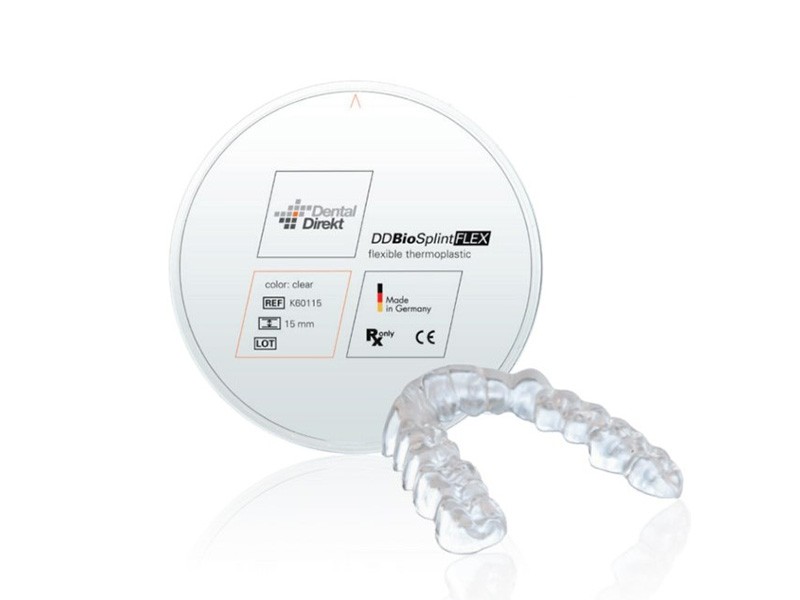

DD Bio Splint FLEX (Ø 98 x 20 mm / PETG)
DD Bio Splint FLEX Ø 98 x 20 mm.
Key Attributes:
• Excellent clarity
• Excellent hydrolytic stability
• Good chemical resistance
• Good color stability upon ETO sterilization
• Good color stability upon gamma sterilization
• Good heat resistance
• Improved processability over traditional
• Copolyesters
• Bonding with conventional cold or light polymers is possible with use of an adequate bonding agent
Mechanical Properties:
ISO Method Value
Tensile Strength @ Yield ISO 527 43 MPa
Tensile Stress @ Break ISO 527 58 MPa
Elongation @ Yield ISO 527 7%
Elongation @ Break ISO 527 185%
Tensile Modulus ISO 527 1548 MPa
Flexural Modulus ISO 178 1495 MPa
Flexural Strength ISO 178 59 MPa
Izod Impact Strength, Notched
23 C 40 C ISO 180 ISO 180 93 kJ/m 20 kJ/m
Optical Properties:
Total Transmittance D 1003 90% Haze D 1003 < 1%
Internal Testing:
ISO Method Value
Flexuralstrength based on 10477 68MPa
Manufacturer: Dental Direkt
